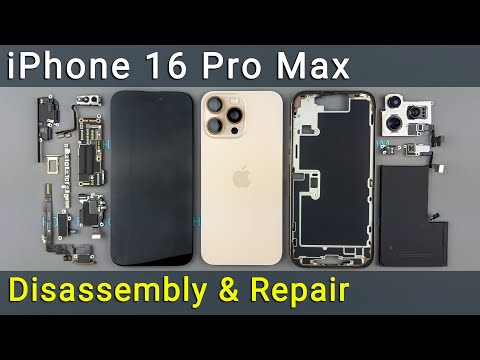

iPhone 16 Pro Max Teardown & Repair Guide: Complete Disassembly and Reassembly

iPhone 16 Pro Max Teardown & Repair Guide: Complete Disassembly and Reassembly

Show Video

Hello everyone, welcome to HowFixit. In this  video guide, we will completely disassemble the   iPhone 16 Pro Max to replace any faulty parts. You  will learn how to replace the Mid-Frame Housing,   back glass, display, camera, battery, logic board,  face ID, speaker, power or volume button, and   charging port. All assembly steps are included,  so you can successfully complete the repair. Before starting, let’s go over the  tools required for this repair:  Screwdrivers: Pentalobe 0.8 mm, Tri-Wing 0.8 mm. Tweezers  Plastic pry tools Suction Cup  Screen disassembly tool – this tool is essential   for easing the separation of  the screen from the device  Waterproof Adhesive Tape Battery Adhesive Strips  I’ve provided links to all tools and  replacement parts in the description below.

For the best results, I advise using a  magnetic mat to organize screws and small   parts throughout the disassembly process,  especially for repairing a device like   an iPhone 16 Pro Max. This will make the  reassembly much easier and you don't have   to worry about the screws getting lost; they  will all securely adhere to the magnetic mat. Now, let's get started. Start by pressing and   holding the volume up and power  buttons to turn off your iPhone.  Remove the two screws located  near the charging port.  Use a hair dryer to warm the back glass for  about a minute, until it's warm to the touch.

If you have a heat gun, set it to  90°C — this temperature is safe   for the glass and will soften the adhesive. Place a suction cup near the bottom edge of   the back glass, then gently lift. Insert a blade  edge into the small gap between the chassis and   the glass to carefully separate the adhesive  and create a gap for inserting a plastic tool.

Heat each edge of the back glass as you work  around it, and don’t insert your tool deeper   than 3 millimeters to avoid damaging internal  components. Remember, a well-warmed surface is   the key to successful backglass removal. Ensure the surface stays warm as you work   around the edges; this helps  make adhesive removal easier.  At the top of the back glass, two metal hinges  hold it to the chassis. When opening this area,

use a pry tool to gently slide the back  glass down, releasing it from these hinges.  Carefully lift the back glass, being mindful  of the cable attached to the logic board.  Remove the screws securing the battery  and back glass connector covers.

Using a plastic spudger disconnect  the battery and back glass cables.  Unscrew and remove the Taptic Engine cover.  Disconnect the Taptic Engine  cable and carefully peel it away.  Remove the Taptic Engine. Remove the screws securing the bottom speaker.  Remove the bottom speaker. The battery is held by three stretch-release   adhesive strips. To remove the battery, you  need to carefully pull these adhesive strips.

Use tweezers to peel down the black pull-tab  at the end of the adhesive strip. Remember,   very carefully use sharp tools near  the battery to avoid puncturing it.  Using blunt-nosed tweezers to grab the  pull-tab and slowly pull it away from   the battery. Be patient - pull slowly to  allow the adhesive to stretch and release.  If an adhesive strip breaks  and can’t be retrieved,   apply a small amount of isopropyl  alcohol beneath the battery. Let   it sit for a minute to soften the  adhesive, then remove the battery.

Remove the battery. Detach cables from the logic board.  Remove the screws securing the  Lidar sensor and remove it.  Remove the screws holding the camera module. Remove the camera module.  Remove the Face ID module.

Remove the screws securing  the ear speaker and remove it.  Remove the screws securing the Charging Port.  The charging port is secured with adhesive. Warm  it up with a hair dryer before removing it safely.  Remove the Charging Port.

Remove the four screws and warm  the area with a hair dryer.  Detach the bottom microphone cable.   If your iPhone’s bottom  microphone is malfunctioning,   replacing this cable should solve the issue.  Remove the screws securing  the front microphone cable.  Using tweezers, separate the front microphone  from the chassis, then remove the last screw.

Warm the cable to ensure a safe removal. Remove the cable.   If the front microphone on your iPhone isn't  working, replacing the cable can fix this issue.  The next step is removing the logic board, but the  display cables are still connected to the back of   the board. Disconnecting the display cables first  before fully removing the logic board is safer.

Use a hair dryer to gently heat the  bottom edge of the iPhone for around   one minute until the screen is warm to  the touch. If you’re using a heat gun,   set it to 80°C – this will soften the  adhesive without risking screen damage.  Place the suction cup near the bottom  edge of the screen and gently pull it   up. Insert the blade edge into the thin gap  between the screen and the frame. Apply slow,   steady pressure to separate the screen. If the  screen is still difficult to lift, apply more heat   and try again until you make a sufficient gap to  insert a plastic spudger. Remember, a well-warmed   screen is the key to successful display removal. Heat each edge of the screen as you work around

it, and don’t insert your tool deeper than 3  millimeters to avoid damaging internal components.  Two metal hinges secure the display  at the top. When opening this area,   use a pry tool to gently slide the display  down to release it from these hinges.  Carefully lift the screen, mindful of the  cables connecting it to the logic board.  Remove the screws securing the brackets over  the front sensor and display connectors.  Using a plastic spudger disconnect the front  sensor and display cables from the logic board.

Take out the SIM card tray  and unscrew the logic board.  Disconnect the remaining  cables and remove the board.  If your iPhone 16 Pro Max has a faulty  logic board or if you need to replace it   due to activation lock issues, installing a new  logic board can resolve the problem. However,   remember that the new logic board  must be calibrated with Repair   Assistant to function correctly with  the battery, display, Face ID, camera,   and enclosure. To complete this calibration  successfully, you’ll need the email address   and Apple ID password previously used with the  iPhone to unlock and pair these components. I’ll   demonstrate this process in more detail  during the reassembly and testing stages.

Remove screws securing the Power Button and  Control Button flex cable to the chassis.  Remove the buttons flex cable from the chassis. The mechanical Control Button is integrated   on the same flex cable as the Power Button. If  either the Control or Power Button does not work,   replacing this flex cable should fix the issue. However, it’s important to note that the Control   Button consists of both a sensor and a mechanical  component. The sensor is welded to the chassis,

making it nearly impossible to remove or  replace without replacing the Mid-Frame   Housing. Additionally, the touch-sensitive part  of the Control Button is linked to your Apple   ID. Therefore, when replacing the Mid-Frame  Housing assembly with the Control Button,   calibration with the Repair  Assistant is required. I’ll   cover this calibration process in detail  during the reassembly and testing stages.  Remove screws holding the Volume  and Action Buttons flex cable.

Remove the buttons flex cable from the chassis.  Replacing this cable will restore function to   these buttons if they’re not working. At this stage, we’ve fully disassembled   the iPhone 16 Pro Max. If your Mid-Frame Housing  is bent or damaged, now is the time to replace

it. You’re also equipped to repair any  faulty components. You’ll find links   to all the replacement parts for the iPhone  16 Pro Max, in the video description below.  Before starting the reassembly, I recommend taking  a short break—this will help you stay focused and   careful throughout the repair process. Reassembly  During the reassembly process, watch the screws.  Remember, using the wrong screw during iPhone

assembly can lead to several issues, including: 1. Misalignment Issues: Using a screw that’s too   short or too long can prevent  parts from aligning properly,   potentially causing flex in the components, loose  connections, or gaps in the frame, which affects   the phone's durability and appearance. 2. Stripped Threads: If a screw doesn’t   fit correctly, it may strip the internal  threads, making it difficult to secure   components properly or remove the screw  in the future without specialized tools.  3. Increased Risk of Electrical Short:  Incorrect screws in areas around the battery   or connectors may create an electrical  short, damaging the battery or causing   potential safety hazards, like overheating. To avoid these issues, it's essential to

track screws during disassembly and ensure  they’re reinserted in the correct locations. Paying attention to connectors and ensuring  they’re clean and dust-free during reassembly   is essential for several reasons: 1. Reliable Connections: Dust or   debris on connectors can interfere with the secure  attachment of components. When connectors aren’t   properly seated, it can lead to issues like  unresponsive displays, malfunctioning cameras,   weak or no signal, and even failure to power on.  Clean connectors help ensure a stable connection,   allowing components to communicate efficiently. 2. Reduced Risk of Short Circuits:

Dust and debris can create small conductive  paths between connector pins, potentially   causing electrical shorts. These shorts can  damage sensitive parts of the logic board,   permanently harming the device  and requiring costly repairs.  Use only an anti-static brush to clean the  connectors. Using an anti-static brush is   vital because static electricity can damage  sensitive iPhone components. An anti-static

brush safely removes dust without generating a  static charge, unlike regular brushes or cloths,   which might create static that  can fry circuits or damage chips. Double-checking the connections of  cables to connectors when assembling   an iPhone is crucial for several reasons: 1. Improperly connected cables can lead to   various malfunctions, such as unresponsive  buttons, cameras, speakers, microphones,   or sensors. If a cable is only partially  connected, the component may function   intermittently, causing unpredictable behavior. 2. Misaligned or loose connections can create

high resistance, leading to overheating  or damage to both the connectors and the   attached components. If certain pins are  misaligned, it could cause a short circuit,   potentially damaging the logic board. 3. Reducing the Need for Reassembly:   Realizing that something is disconnected after  reassembly means opening up and disassembling   the iPhone again. Double-checking  connections ensures you won’t need   to go back in to fix an overlooked issue. Taking the extra time to double-check each   connection ensures a thorough, reliable  repair, minimizing the need for rework.

Using the wrong screw, dust in the connectors,   or a loose cable connection are the most common  issues that can cause an iPhone to malfunction   after reassembly. By carefully following each  step and addressing these potential problems,   you’ll ensure a reassembly and  complete the repair successfully. Now it’s time to install the battery.  Attach new adhesive strips to the back   of the battery. These strips will hold  the battery securely in place while

still allowing for easy removal if you  need to replace it again in the future.  Carefully place the new battery into the  housing, ensuring that the battery cable   connector aligns perfectly with the  socket on the logic board. Once in place,   press down slightly to secure the  battery with the adhesive strips.  Once everything is reassembled, power  on your iPhone and test all functions. Calibrate the Parts with Repair Assistant After repair, calibrate your replacement parts   to ensure full functionality  using Repair Assistant.  Go to Settings, then select  General, and then the About section.

You will see a new section Parts  & Service History, go to it.  Tap Restart & Finish Repair to  begin using Repair Assistant.  Ensure your device is connected to Wi-Fi and has  over 20% battery to complete the calibration.  After rebooting, you'll see the  Repair Assistant, select Continue.

On the next screen choose a Wi-Fi network.  Then begins the configuring phase,   which may take several minutes. Once calibration is complete,   select Restart iPhone to complete the repair  process and continue using your iPhone.  If you're unable to finish the  repair with a Repair Assistant,   here are some tips that can solve this problem: 1. Make sure that your device is connected to the

internet using a stable Wi-Fi connection. 2. Make sure that your device has   more than 20 percent battery. 3. Restart your device and try   to follow the steps again to finish the repair. 4. Make sure the replacement part is installed   correctly. Re-connect the replaced module

and try to follow the steps again. 5. Replacement part from a third-party   supplier. Not every third-party parts manufacturer  can guarantee the successful completion of Repair   Assistant. Although you can see the message  that this part is not functioning as expected,   you can continue using your iPhone. But your  replacement module will have an Unknown status   in the Parts & Service History section. 6. Replacement part protected by Activation   Lock. If you reuse a replacement module from  an iPhone that's protected by Activation Lock

(which means this module is still linked  to the previous owner's Apple Account),   you need to authenticate with the Apple  Account used with the previous device to   finish the repair. When using Repair Assistant  to finish the repair, you'll be asked to enter   the email address or phone number and password  that was used to set up the previous owner's   iPhone paired with this module to unlock it. If you don't finish the Repair Assistant,   you can continue using your iPhone, but the part  might not perform as well as a calibrated part   and your replacement module will have an Unknown  status in the Parts & Service History section. Verify all modules, such as  Face ID, camera, buttons,   charging port, microphones, sensors,  and speakers, are working properly.  Now that we've verified everything is working,  let's proceed to restore water resistance.

First, remove the old adhesive tape from the  iPhone’s frame. Once the iPhone is opened, the   adhesive tape loses its sealing properties  and can no longer protect your device from   water and dust. To restore water resistance,  you’ll need to apply new waterproof sealing   tape around the frame. However, if you  don’t have the new adhesive tape on hand,

it’s best to leave the old tape in  place until you’re ready to replace it.  Use isopropyl alcohol (91% or higher)  on a cotton swab to clean any remaining   adhesive. This is important for better  adhesion of waterproof sealing tape.  Ensure you’re applying the tape on the correct  side and that it aligns precisely with the edges   of the iPhone frame. Carefully position  the new adhesive sealing tape around the   frame. Make sure the tape aligns with the edges. Use a plastic spudger to press down the adhesive   tape around the perimeter of the frame. Once the tape is in place, grab the small

pull-tab and peel off the front  liner to expose the adhesive.  Use a rubber blower to remove any dust from  camera lenses for a clean, professional finish.  Reconnect the back glass cable, then  the battery, and secure it with screws.  Press down around the edges  to seal the back glass.  We are done with the back glass,  let's move on to restoring the   sealing adhesive tape on the display. Remove the old adhesive tape from the

iPhone frame and clean any remaining  adhesive with isopropyl alcohol.  Use isopropyl alcohol (91% or higher) on a  cotton swab to clean any remaining adhesive.  Carefully align the adhesive sealing tape with the   iPhone frame and press it  into place with a spudger.  Reconnect the display and sensor connectors,  and secure the brackets with screws.

Press down around the screen  edges to ensure a snug fit.  Finally, fasten the two screws near the  charging port to complete the assembly.  If you found this guide helpful, give us a  thumbs up and subscribe for more tech tips   and guides. Visit our website for more tech  insights and Do-It-Yourself guides. Remember,

every tech challenge is an opportunity to  learn and grow, and we’re here to guide you.  The repair is complete. Thank you for watching  HowFixit, and we’ll see you next time!
